Product Description

Ship Building Division

Passenger ship and Oil Tank and Cleaning vessel.

OIL TANKER

RO_RO PASSENGER

FISHING VESSEL

PATROL BOAT

CUSTOMS VESSEL

TUG BOAT

CAR FERRY

FERRY BOAT

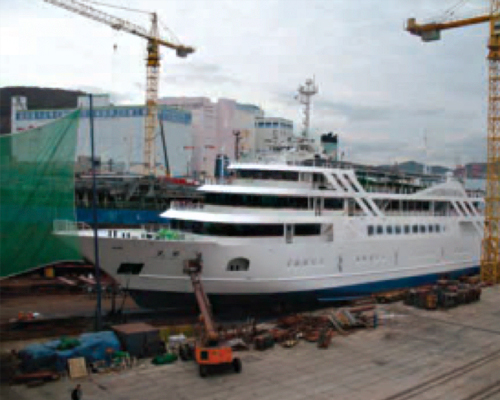

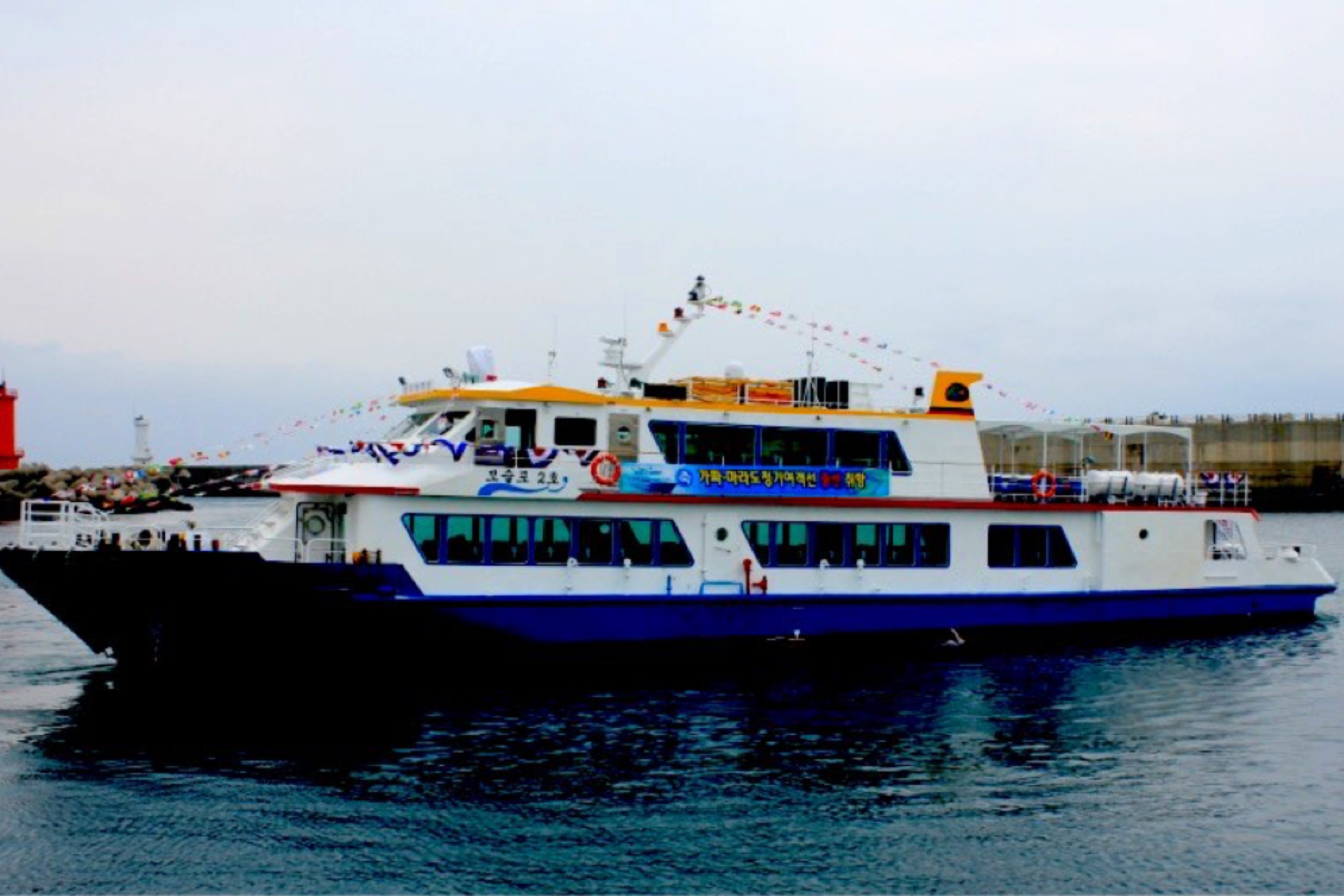

PASSENGER SHIP

Principal Particular 2 Ships

Approved KR

∙ Length overall : 34.5 M
∙ Breadth : 7.3 M
∙ Depth : 2.65 M
∙ Speed (90% MCR) : 15 Knot
∙ Passenger : 244 Persons

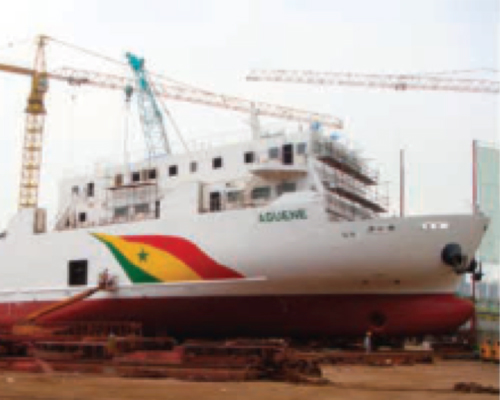

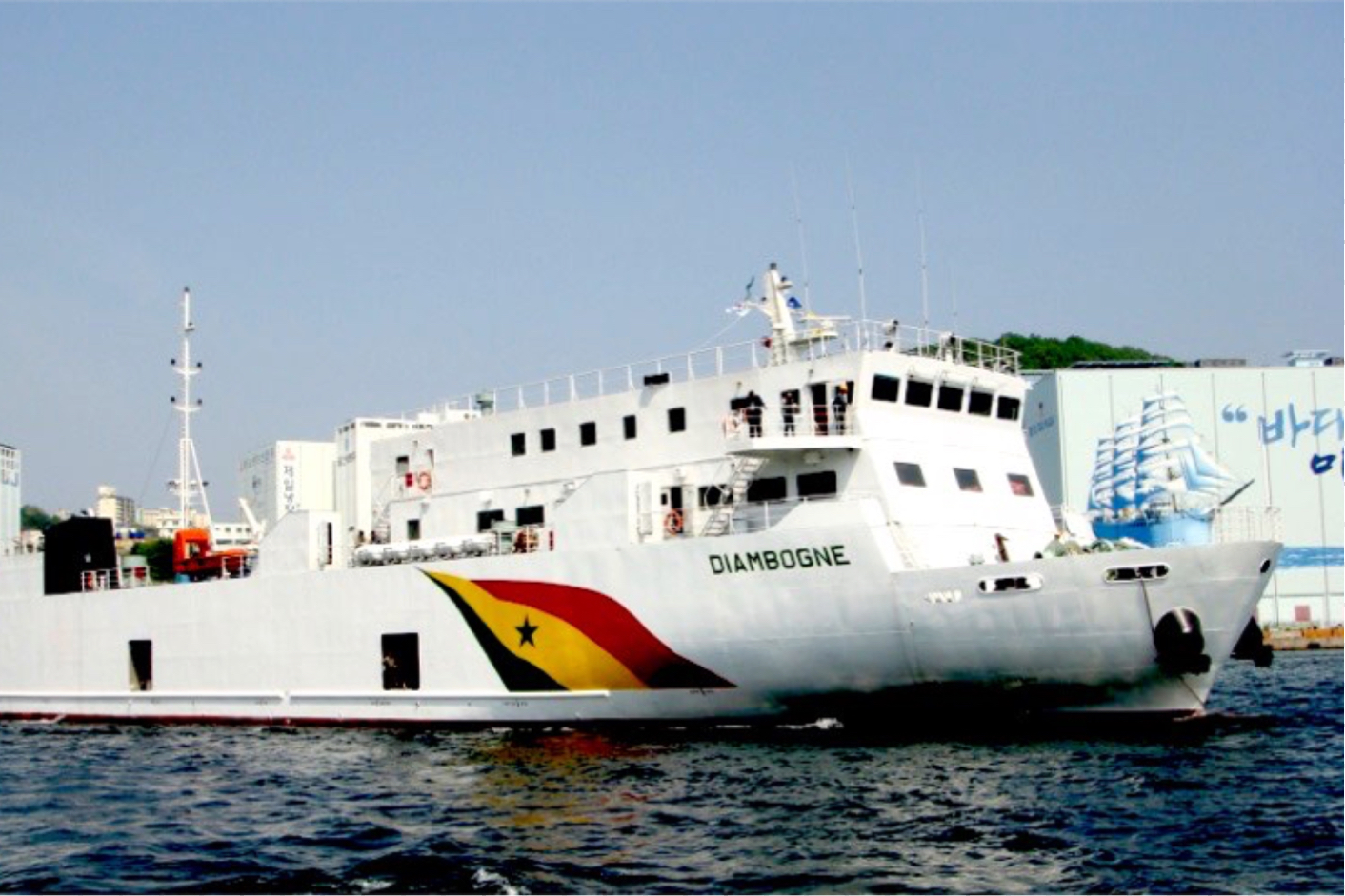

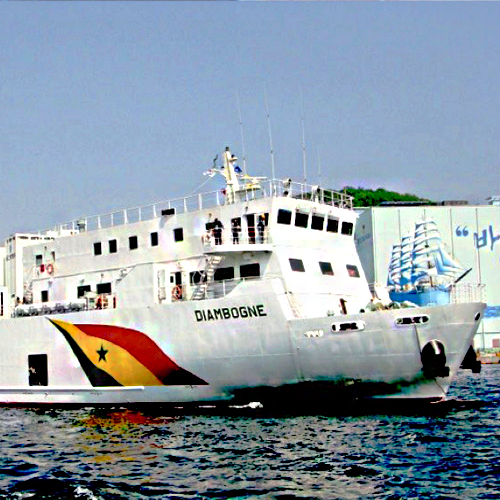

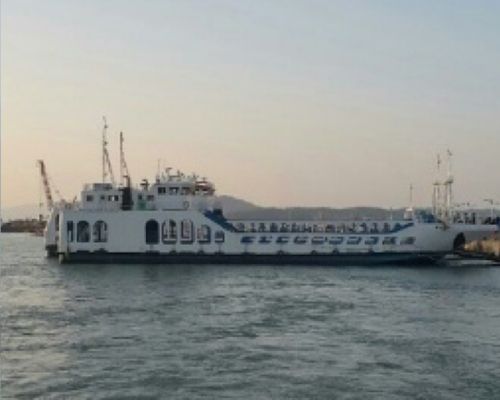

PASSENGER SHIP

Principal Particular

Approved KST

∙ Length overall : 74.5 M
∙ Breadth : 15.00 M
∙ Depth : 8.5 M
∙ Speed (90% MCR) : 14 Knot
∙ Passenger : 212 Person
∙ 35 Ton Truck x 13 / Car x 33

Oil Tanker and

Other Vessel Building

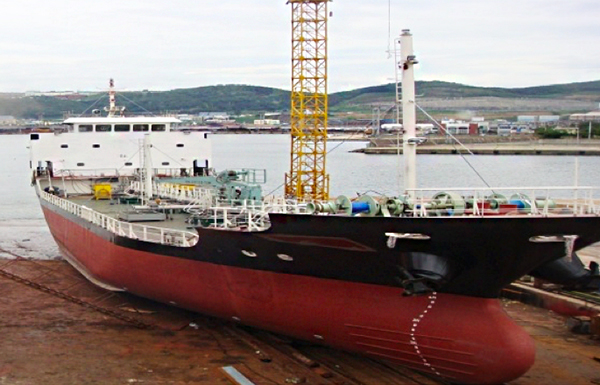

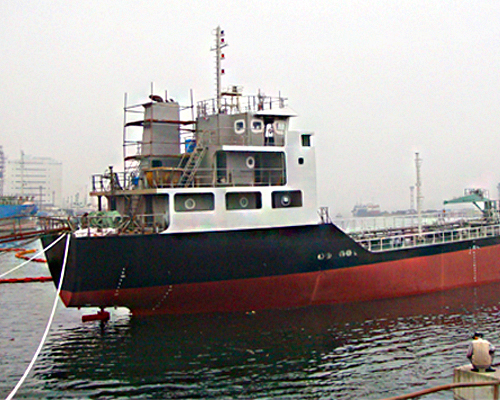

Oil Tanker

Principal Particular
(Approved KR)

∙ Length overall : 63.5 M
∙ Breadth : 10.20 M
∙ Depth : 4.85 M
∙ Speed (90% MCR) : 12 Knots
∙ GT / 495 Ton
∙ Dead Weight : 1200 DWT

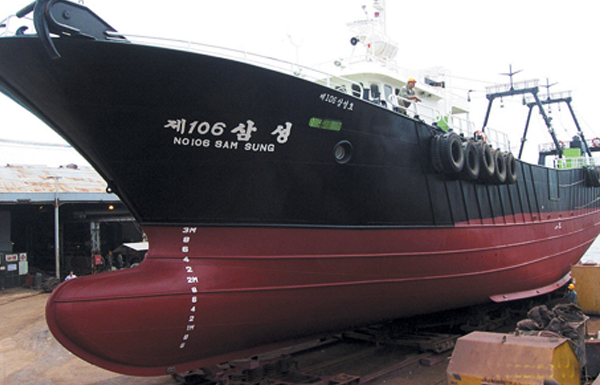

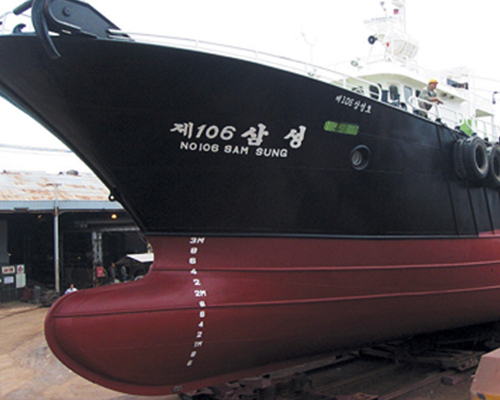

Pair Trawler

Principal Particular
(Approved KST)

∙ Length overall : 42.37 M
∙ Breadth : 6.80 M
∙ Depth : 3.10 M
∙ Speed (90% MCR) : 11.0 Knots
∙ GT / 139 Ton

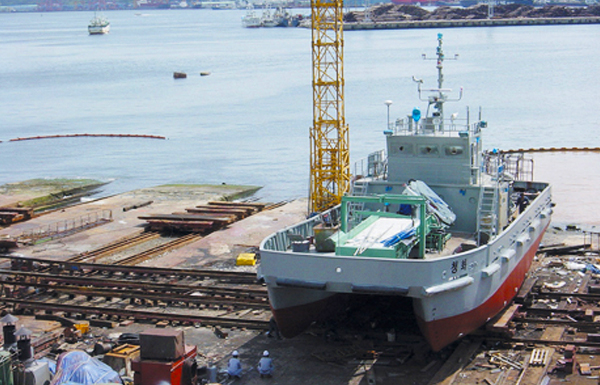

Water Surface Cleaner

Principal Particular
(Approved KST)

∙ Length overall : 24.70 M
∙ Breadth : 9.50 M
∙ Depth : 2.80 M
∙ Speed (90% MCR) : 12.46 Knots
∙ GT / 70 Ton

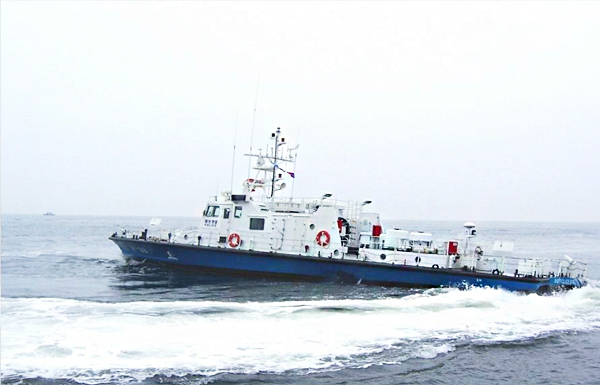

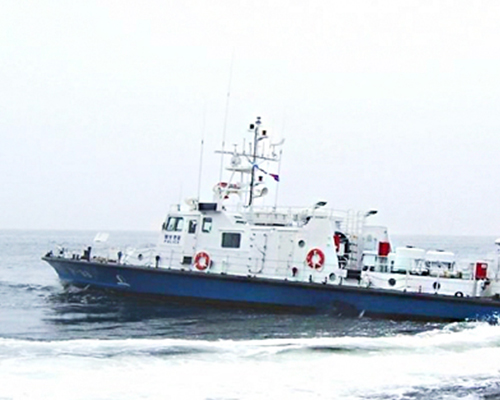

Costal Patrol Boat

50Ton

Principal Particular
(Approved KR)

∙ Length overall : 28.7 M
∙ Breadth : 5.4 M
∙ Depth : 2.5 M
∙ Speed (90% MCR) : 30 Knot
∙ CREW : 10P
∙ PROPULSION : TWIN WATER JET
∙ MAIN ENGINE : MTU 12V 2000X96

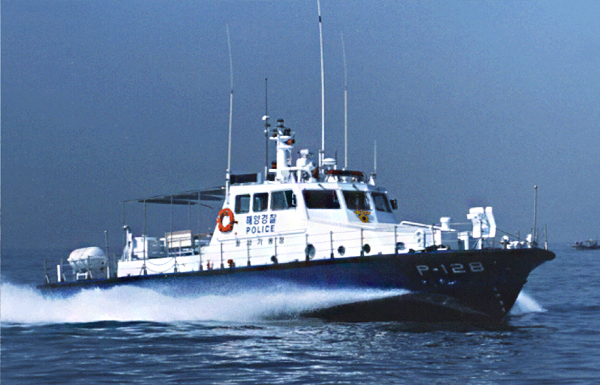

21TON

Principal Particular
(Approved KR)

∙ Length overall : 19.8 M
∙ Breadth : 4.6 M
∙ Depth : 2.1 M
∙ Speed (100% MCR) : 35 Knot
∙ CREW : 6P
∙ PROPULSION : TWIN WATER JET
∙ MAIN ENGINE : 1500PS X 2SETS

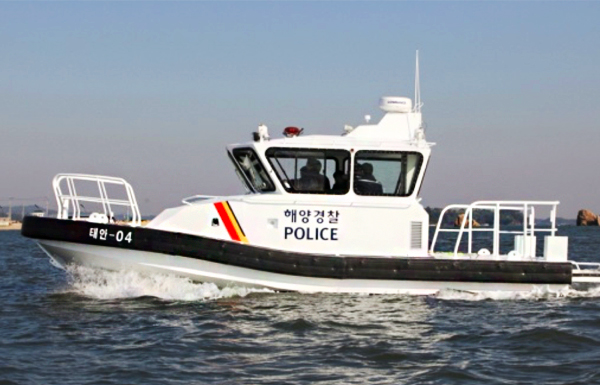

10TON

Principal Particular
(Approved KR)

∙ Length overall : 9.50 M
∙ Breadth : 3.20 M
∙ Depth : 1.52 M
∙ Speed (100% MCR) : 35 Knot
∙ CREW : 4P
∙ PROPULSION : TWIN WATER JET
∙ MAIN ENGINE : 370HP X 2SETS

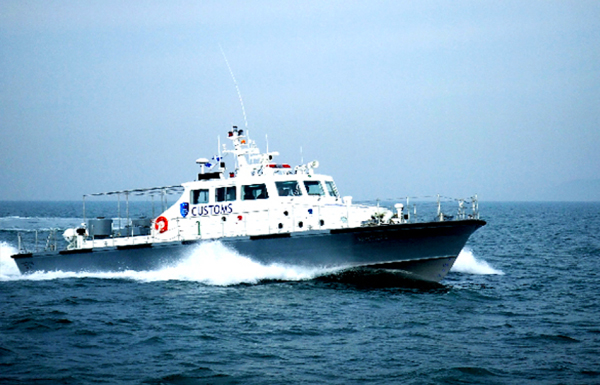

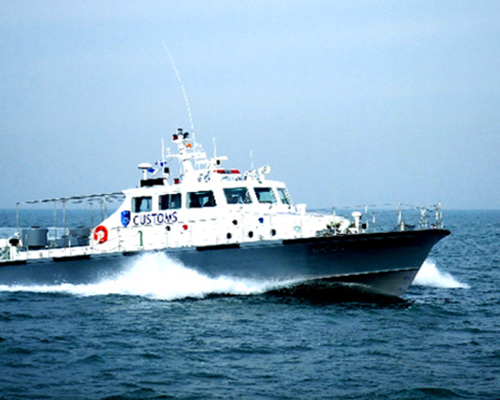

Customs Inspection Vessel

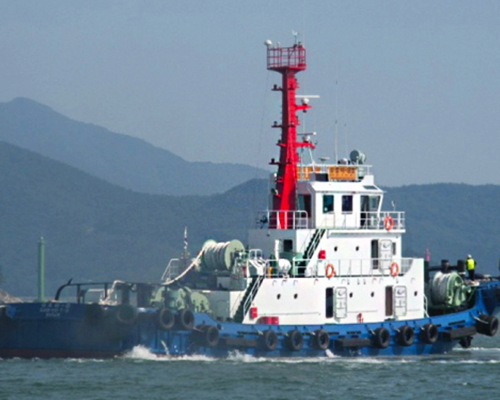

& Tug Boat

Open Type

Principal Particular
(Approved KR)

∙ Length overall : 22.08 M
∙ Breadth : 4.90 M
∙ Depth : 2.5 M
∙ Speed (90% MCR) : 30 Knot
∙ CREW : 6P
∙ MAIN ENGINE : 1,000BHP X 2SETS
∙ PROPULSION : WATER JET

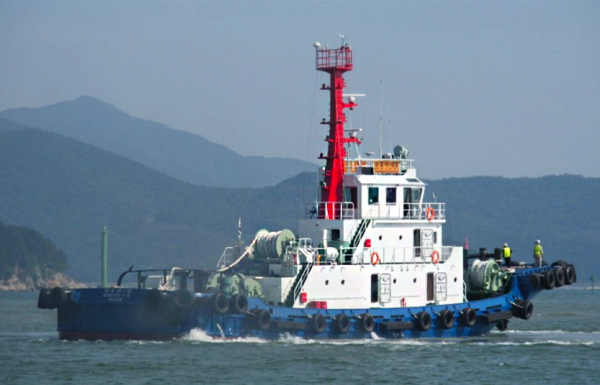

Closed Type

Principal Particular
(Approved KR)

∙ Length overall : 38/.0 M
∙ Breadth : 10.0 M
∙ Depth : 4.6 M
∙ Speed (90% MCR) : 14 Knot
∙ CREW : 6P
∙ MAIN ENGINE : 2,500PS X 2SETS
∙ PROPULSION : Z-PELLER

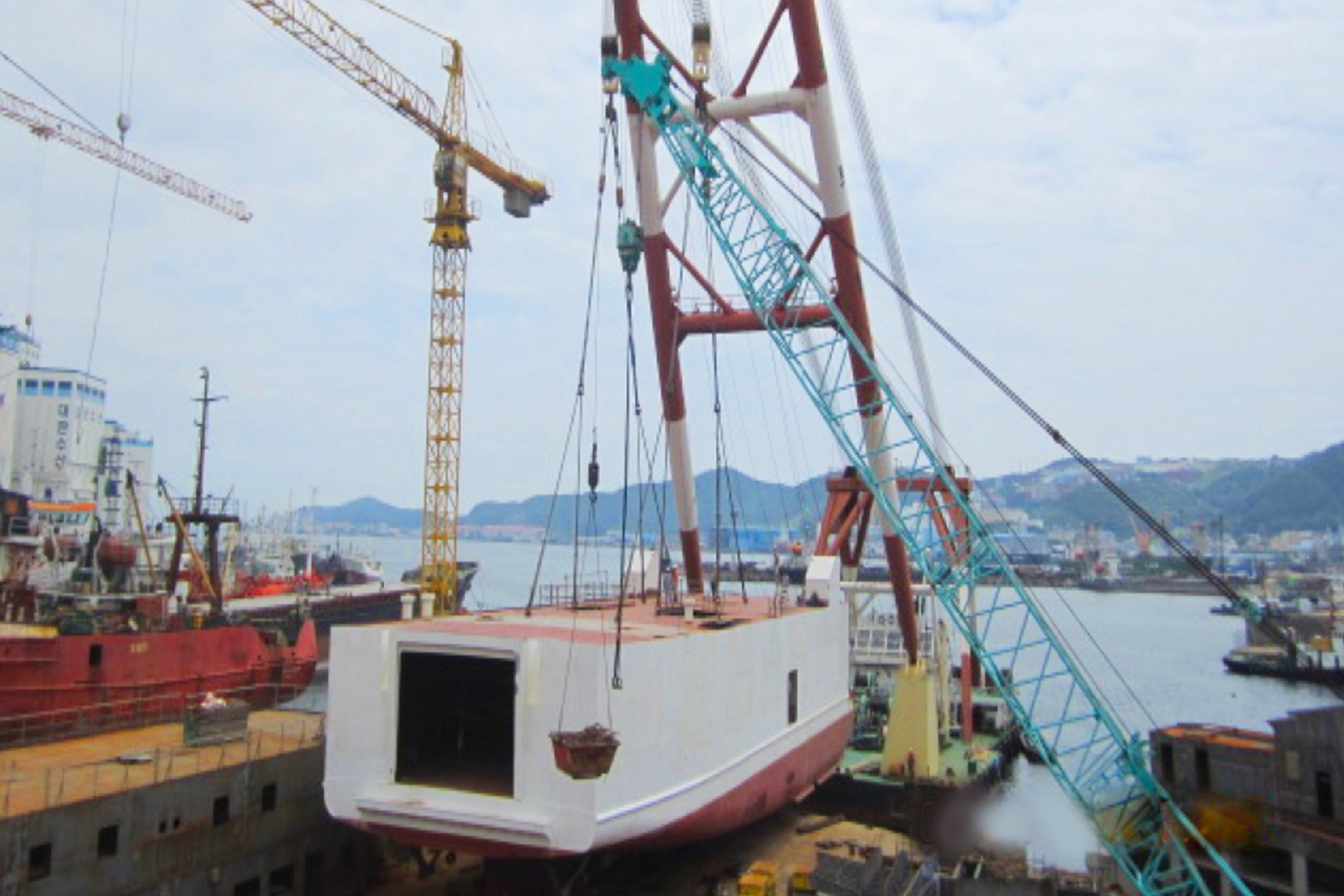

Ship Building Procedure

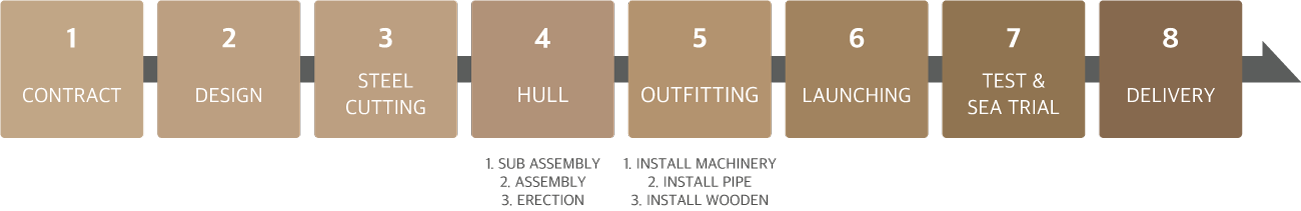

Ship Building Process

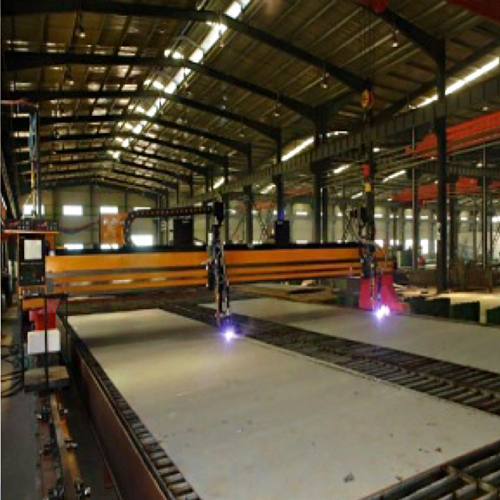

① STEEL CUTTING

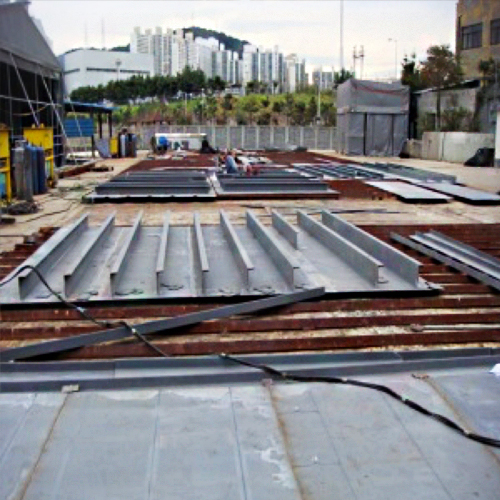

② SUB- ASSEMBLY

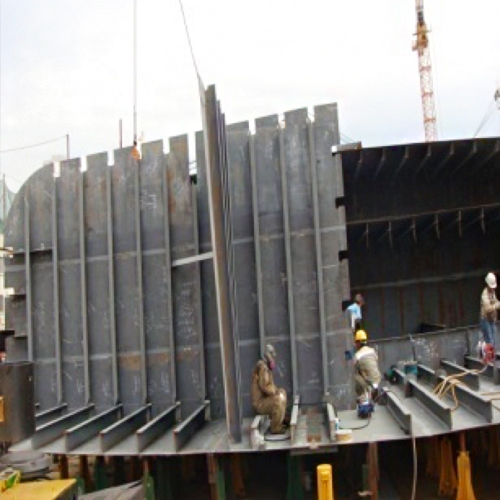

③ MIDDLE ASSEMBLY

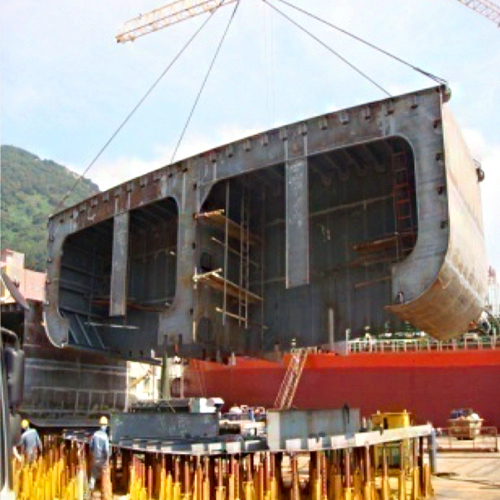

④ LARGE ASSEMBLY

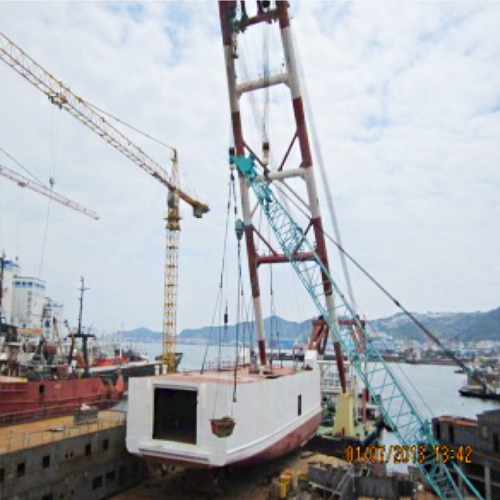

⑤ ERCTION

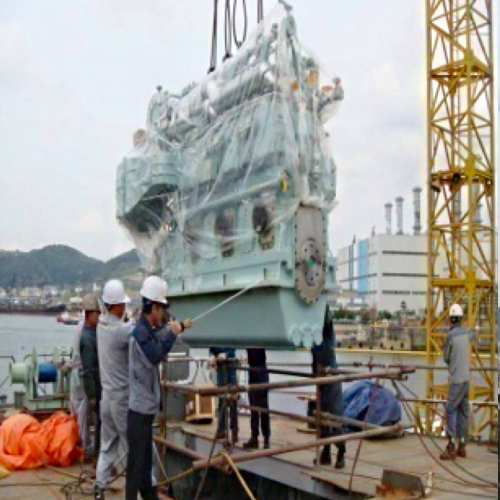

⑥ INSTALL MAIN ENGINE

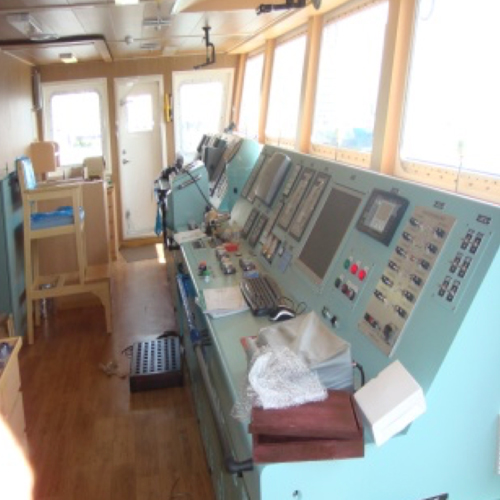

⑦ NAVIGATION EQUIPMENT

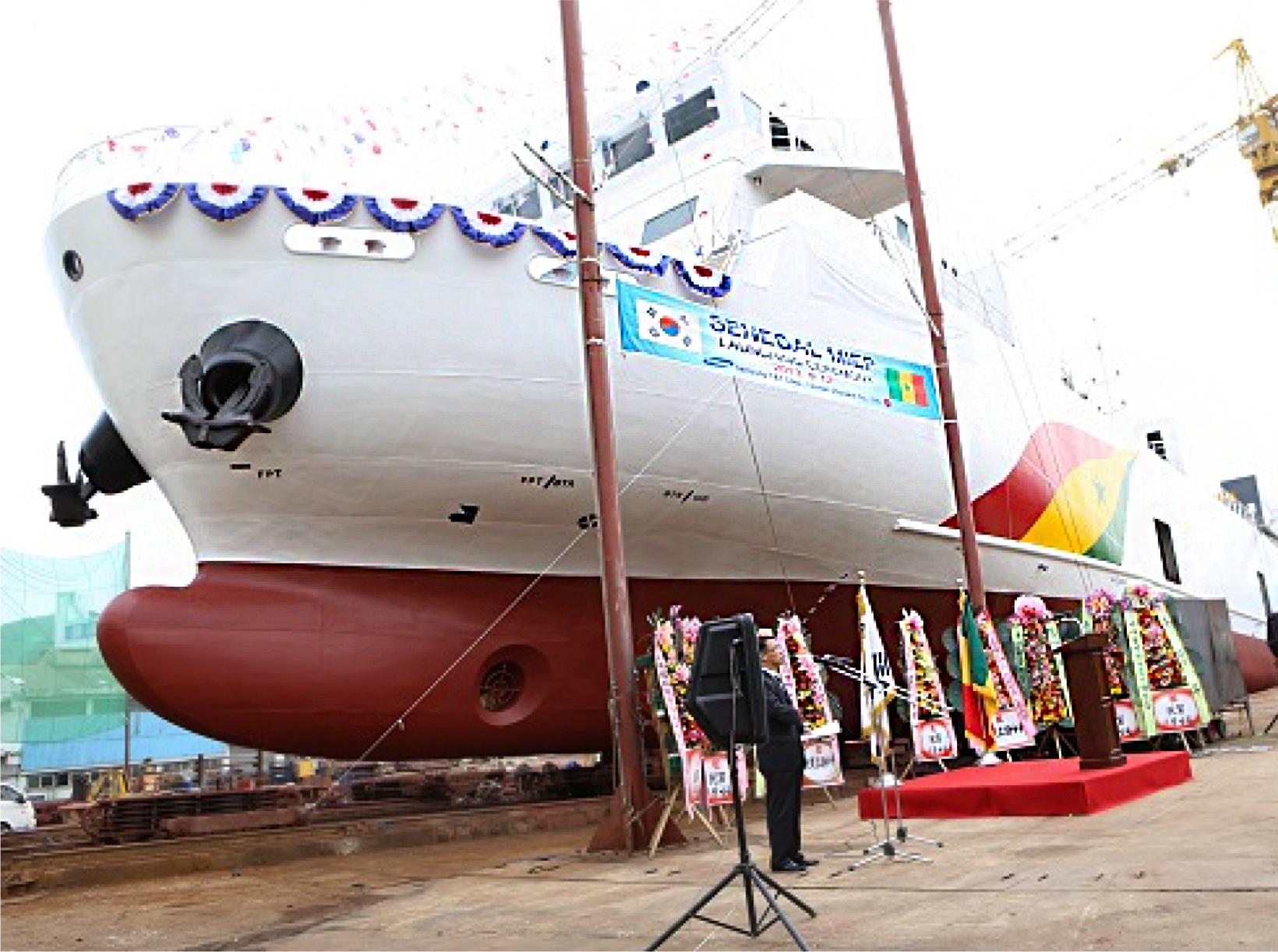

⑧ LAUNCHING

⑨ SEA TRIAL

⑩ DELIVERY
